Outdoor P16 DIP Fixed installation LED Display
;){kind=small}
Products description:
Features
This is a product particularly designed for outdoor advertising applications thanks to its excellent balancing between cost and resolution. If fact, P16 is more used in rental applications than any other pitches.
It has some great features as:
●Highest resolution for any outdoor applications;
●Energy-efficient version is available;
●Brightness/cost adjustability;
It's good for :
●General rental display in all occasions;
●Automobile trailer display;
●Fixed installation for those outdoor advertising purpose with short viewing distances;
It has some great features as:
●Highest resolution for any outdoor applications;
●Energy-efficient version is available;
●Brightness/cost adjustability;
It's good for :
●General rental display in all occasions;
●Automobile trailer display;
●Fixed installation for those outdoor advertising purpose with short viewing distances;
Specifications:
| Model No. | P16 |
| Pixel Pitch | 16mm |
| Module Size | 256mm*128mm |
| Module Resolution(pixels) | 16*8 |

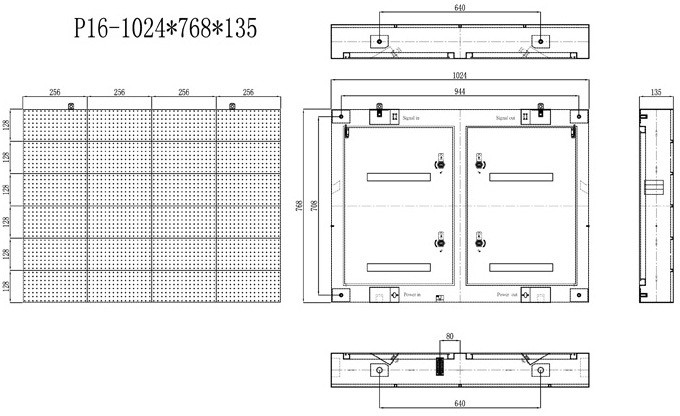

| Panel Size | 1024mm×768mm |
| Panel Resolution(pixels) | 64*48 |
| Pixel Configuration(RGB) | 1G1B |
| Pixel Density(pixels/m2) | 3906 |
| Brightness(cd/m2) | ≥8000 |
| Best Viewing Distance(m) | 15-300 |
| Max.Power Consumption(W/m2) | 1000 |
| Drive Mode | Constant Static Current |
| Wavelength | R 620-625 G 520-525 B 470-475 |
| Viewing Angle | 110°(H)/45°(V) |
| Operating Temperature | –20~60°C |
| Video Frame Rate(Hz) | ≥60Hz |
| Display Refresh Rate(Hz) | ≥600Hz |
| Grey Level(colors) | 16.7million |
| Life Span | ≥100,000 hours |
| Working Voltage | 220V±15% OR 110V±15% |
| Video Signal Input | RF,S_Video,RGB,RGBHV,YUV,YC,COMPOSITION |
| Control System | LINSN OR DB-STAR |
Product Images:
